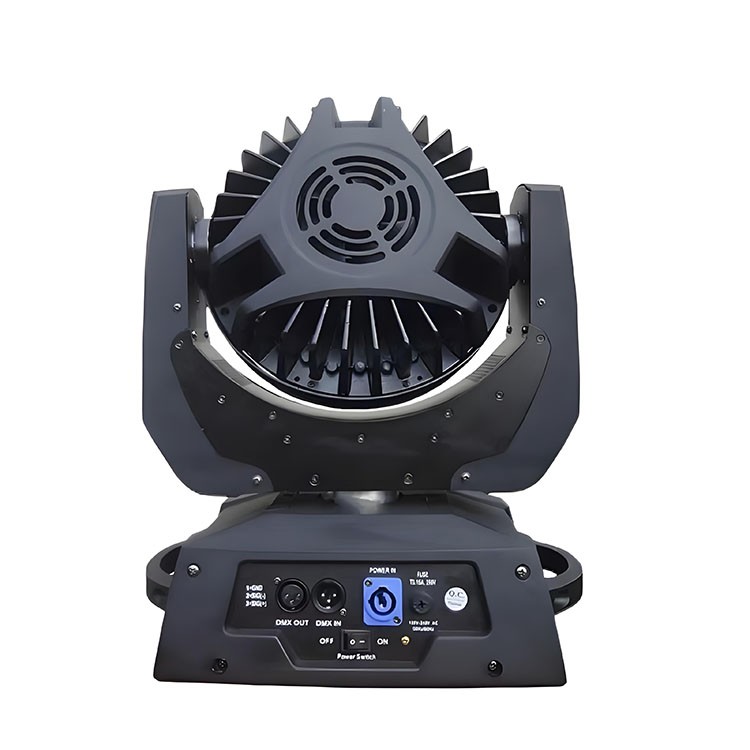

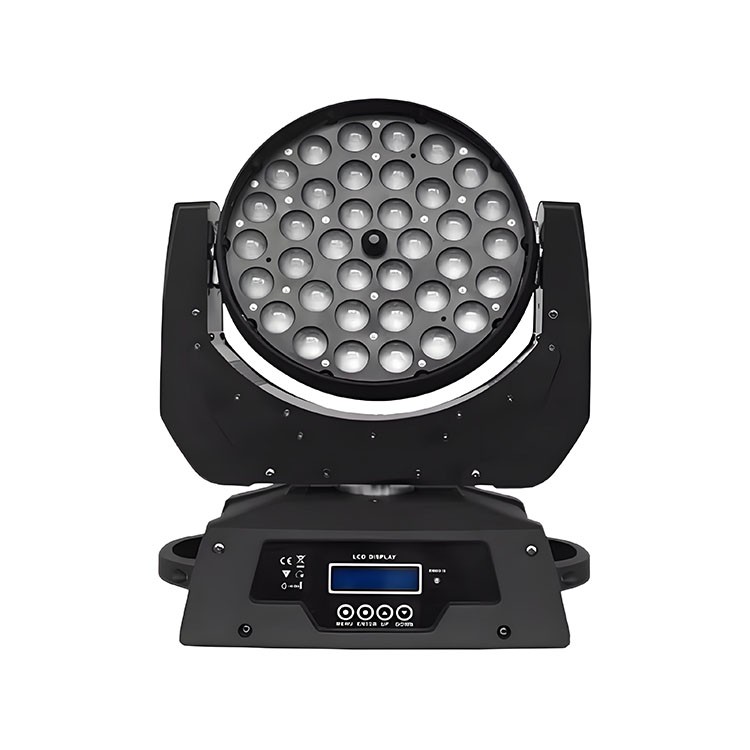

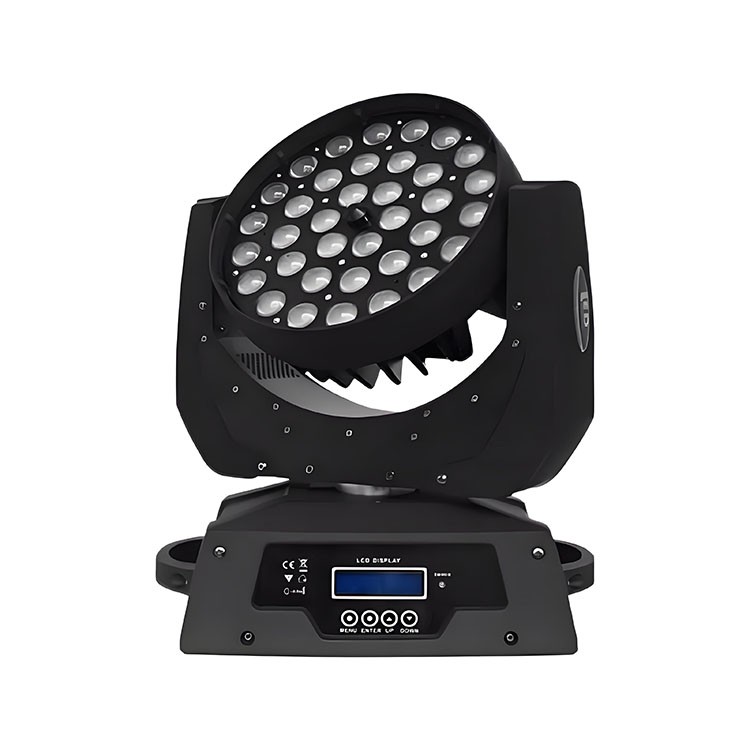

36x10W LED Moving Head Wash

VT-L3610W adopts 36pcs 10W RGBW 4in1 LEDs, These LEDs generate a rich, even wash of light, covering a wide area with vibrant colors. Thanks to advanced color - mixing technology, it can produce an extensive spectrum of hues. Whether you're aiming for a soft, ambient glow at a wedding or a bold, energetic display at a nightclub, this light can achieve the perfect color tone.​
The moving head design allows for remarkable flexibility. With a wide pan and tilt range, it can precisely target different areas, enabling lighting designers to create dynamic lighting effects. The high - precision movement ensures smooth transitions, adding fluidity to any lighting show.​
It supports industry - standard DMX512 control protocol, making integration into existing lighting systems seamless. Additionally, alternative control options like master - slave and sound - activated modes provide versatility for various event setups.​
Built with durability in mind, it features a sturdy housing and an efficient cooling system to ensure consistent performance, even during long - term use. Ideal for concerts, stage performances, corporate events, and more, this Moving Head Wash Light is your go - to choice for adding a touch of brilliance to any occasion.

EMAIL


OVERVIEW



·36pcs*10W RGBW 4IN1 LED


· Zoom range:8°-60°(Beam/Wash effect)


· With auto zoom


·RGBW color mixing


·1-25times/sec High Speed Electronic Strobe


· Usage: Concerts, stage performances, corporate events, and more



SPECIFICATIONS



SOURCE:

Light source: 36pcs*10W RGBW 4IN1 LED

Average Lifespan: 50,000 hours





CONNECTIONS:

DMX in/out : 3-pin XLR

Power : PowerCon



POWER SYSTEM:

Voltage : AC100-240V 50/60Hz

Power consumption: 300W



Cooling system

Copper tube+Fan cooling system

OPTICS:

Zoom range: 8°-60°(Beam/Wash effect)

Auto Zoom




Work Environment:

Maximum ambient temperature: 40°C

Minimum operating temperature: -10°C

Maximum surface temperature: 65°C



EFFECTS:

RGBW color mixing

Dimmer: 0%-100% Linear dimming

Strobe: 1-25times/sec High Speed Electronic Strobe







IP Rating:

IP20



MOVEMENT:

Pan:0-540°(16-bit control)

Tilt: 0-270°(16-bit control)

Automatic Pan/Tilt position correction






SIZE/WEIGHT:

Product size:

Net weight:





CONTROL:

Control Protocols: DMX512

DMX Channel : 16CH

LCD display






WARRANTY:

2 Years






APPROVALS:

CE & RoHS
