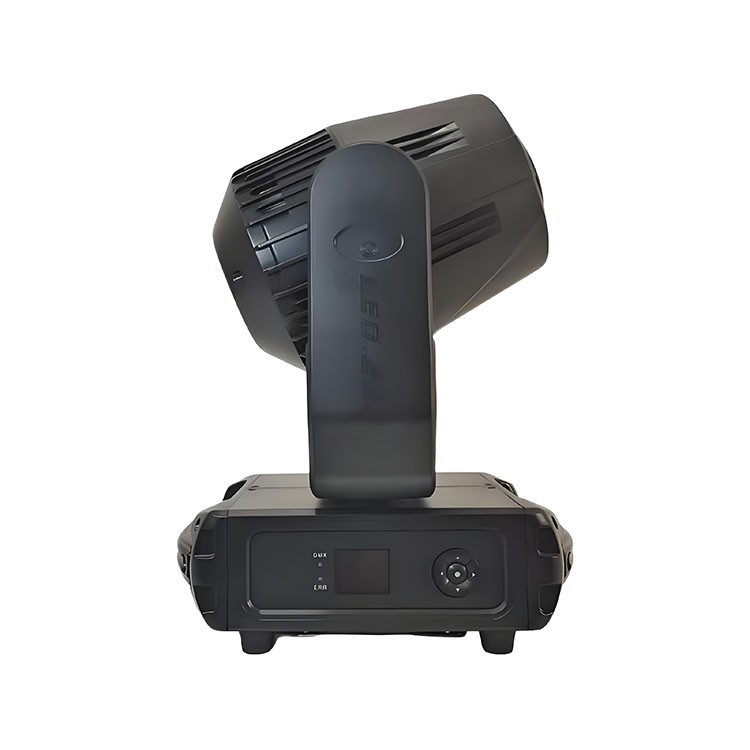

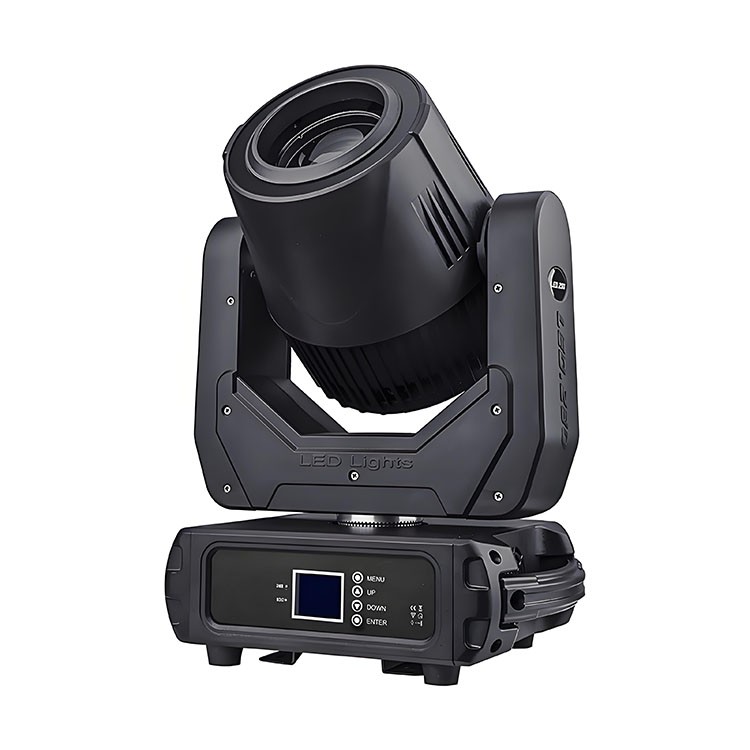

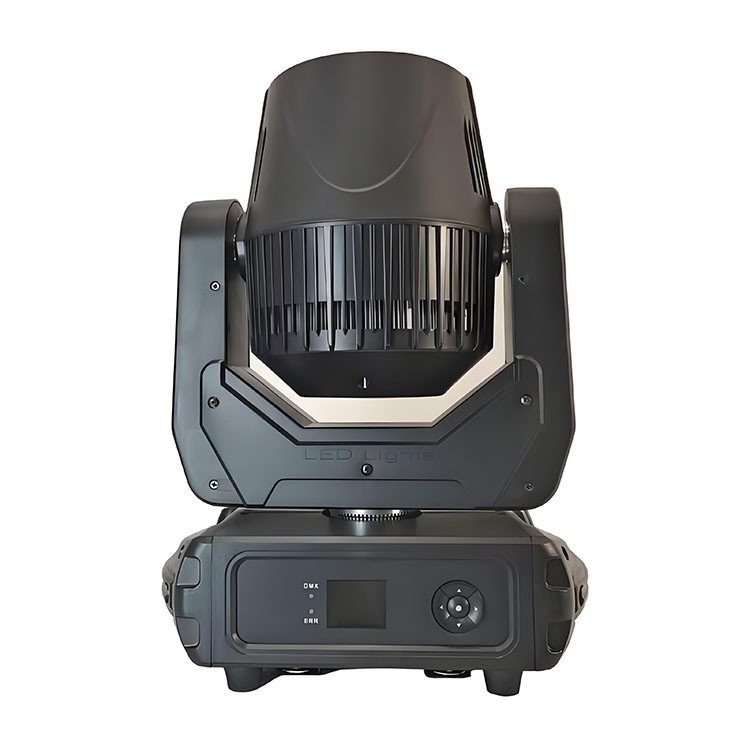

280W Mini Moving Head LED Stage Spotlight

VT-L280S Powered by a high - efficiency 280W LED light source,it offers a balance between energy - saving and high - intensity illumination. The color wheel on this light features multiple colors, with 7colors + white. In terms of pattern projection, it comes equipped with both static and rotating gobo wheels. The static gobo wheel has 8 fixed gobos + white, while the rotating gobo wheel includes 16 rotating gobos + white. It create a variety of interesting patterns, and the high - speed rotation can add a sense of dynamism to the projections. Additionally,it also offer a unique feature high - speed shake effect for more eye - catching visual impacts. Built with durability in mind, it has a sturdy housing and a reliable cooling system to ensure stable performance during extended use. The light is suitable for various occasions, including concerts, stage performances, nightclubs, weddings, and corporate events. Its ability to project sharp patterns, create rich colors, and move smoothly makes it an ideal choice for lighting professionals looking to create unforgettable visual experiences.​

EMAIL


OVERVIEW



·high - efficiency 280W LED light source


· Zoom range: 5°-20°


·8 fixed gobos + white and 16 rotating gobos + white


·Triple prism effect


·0%-100% linear focus


· Usage: Concerts, stage performances, nightclubs, weddings, and corporate events.




SPECIFICATIONS



SOURCE:

Light source: 280W OSRAM LED module

Average Lifespan: 50,000 hours





CONNECTIONS:

DMX in/out : 3-pin XLR

Power : PowerCon



POWER SYSTEM:

Voltage : AC100-240V 50/60Hz

Power consumption: 280W



Cooling system

Copper tube+Fan cooling system

OPTICS:

Focus: 0%-100% linear focus

Beam angle (gobo effect): 5°-20°

High-density glass optical lens




Work Environment:

Maximum ambient temperature: 40°C

Minimum operating temperature: -10°C

Maximum surface temperature: 65°C



COLOR:

Color wheel: 7 colors+open






IP Rating:

IP20



GOBO:

Static gobo: 8 gobos+open

Rotating gobo: 16 gobos+open






SIZE/WEIGHT:

Product size: 33*28*42cm

Net weight: 13 KGS





EFFECTS:

Prism: triple prism effect

Dimmer: 0%-100% Linear dimming

Strobe: 1-25 times/sec High Speed Electronic Strobe




WARRANTY:

2 Years



MOVEMENT:

Pan:0-540°(16-bit control)

Tilt: 0-270°(16-bit control)

Automatic Pan/Tilt position correction



APPROVALS:

CE & RoHS

CONTROL:

Control Protocols: DMX512

DMX Channel : 16CH

LCD display
