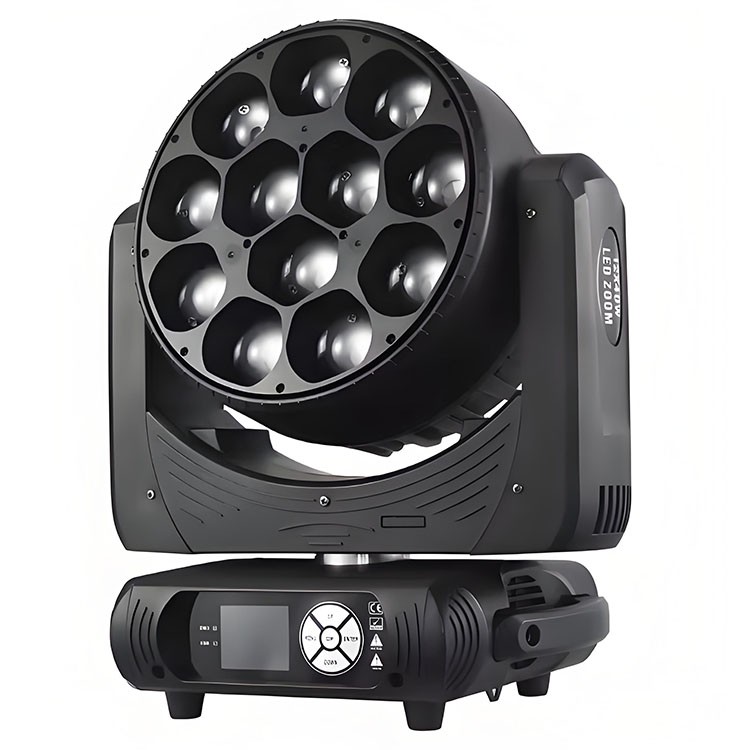

12X40W LED Wash Moving Head With Zoom

VT-L1240W Our 12X40W LED Wash Moving Head With Zoom is a remarkable addition to any stage lighting setup. Packed with 12 high - powered 40W LEDs, this fixture delivers a rich and intense wash of color, transforming the stage into a vibrant visual canvas.​
The integrated focusing feature sets it apart. With precise focus control, you can adjust the beam spread from a narrow, concentrated wash for highlighting specific areas to a wide, even spread that covers large sections of the stage. This flexibility allows for creative lighting designs, whether you need to isolate a solo performer or create a uniform background color for the entire ensemble.​
The high - quality LEDs offer excellent color rendering, ensuring that every shade is vivid and true - to - life. The color mixing system enables seamless transitions between a vast spectrum of colors, allowing you to set the perfect mood for any performance, be it a passionate concert, an elegant theater production, or a dynamic corporate event.​
In terms of movement, it has smooth pan and tilt capabilities, providing a wide range of motion to direct the light precisely where it's needed. The durable construction ensures reliability, even under the demanding conditions of frequent use and transportation. Upgrade your stage lighting with our 12x40W Focusable Stage Wash Moving Head Light and experience professional - grade lighting effects like never before.

EMAIL


OVERVIEW



·12pcs*40W RGBW 4IN1 OSRAM LED


· Zoom range: 4.5°-45°


· DMX Auto zoom


·Individual LED control; wash, beam, pattern effect modes


·0%-100% Linear dimming


· 1-25times/sec High Speed Electronic Strobe


· Usage: Theatre & opera, concert, stadium & sport venues,television, events & trade shows, permanent Installations




SPECIFICATIONS



SOURCE:

Light source: 12pcs*40W RGBW 4IN1 OSRAM LED

Average Lifespan: 30,000 hours





CONNECTIONS:

DMX in/out : 3-pin XLR

Power : PowerCon





POWER SYSTEM:

Voltage : AC100-240V 50/60Hz

Power consumption: 500W





Cooling system

Copper tube+Fan cooling system

OPTICS:

Zoom range4.5°-45°

Auto Zoom





Work Environment:

Maximum ambient temperature: 40°C

Minimum operating temperature: -10°C

Maximum surface temperature: 65°C



EFFECTS:

RGBW color mixing

Individual LED control; wash, beam, pattern effect modes

Dimmer: 0%-100% Linear dimming

Strobe: 1-25times/sec High Speed Electronic Strobe




IP Rating:

IP20



MOVEMENT:

Pan:0-540°(16-bit control)

Tilt: 0-270°(16-bit control)

Automatic Pan/Tilt position correction







SIZE/WEIGHT:

Product Size34*26*44CM

Net Weight15kg



Packing Size440*420*550mm

Gross Weight18kg




CONTROL:

Control Protocols: DMX512, RDM

DMX Channel : 19CH/29CH/117CH

LCD display

With a USB for easy software upgrade

Note: The panel USB port cannot be used to charge a mobile phone. Inserting a mobile phone to charge will burn the mainboard.






WARRANTY:

2 Years






APPROVALS:

CE & RoHS
