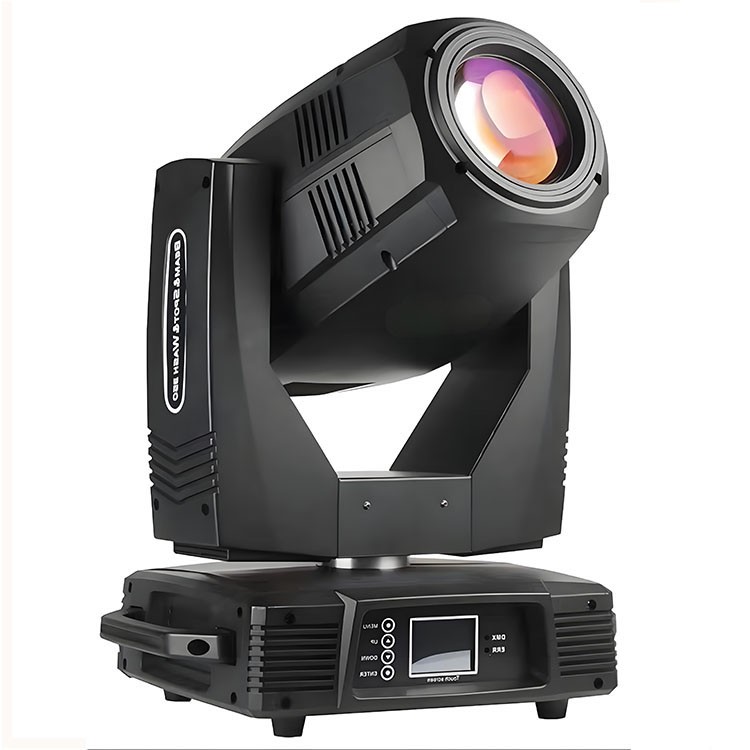

350W BSW Moving Head Disco Lights

VT-350BSW Illuminate your stage with our 350W 3in1 Moving Head Light, a powerhouse lighting solution that combines the functions of beam, spot, and wash into one versatile unit.​
Powered by a 350W bulb, this moving head light generates a brilliant and intense light output, capable of reaching every corner of the stage. With a high - color - rendering index, it ensures that colors are vivid and true - to - life, whether for highlighting performers or creating stunning visual backdrops.​
Featuring a wide range of functions, it has multiple pattern wheels. The fixed pattern wheel comes with a variety of patterns, allowing you to project different shapes and designs onto the stage, while the rotating pattern wheel adds dynamic effects with its spinning patterns. The color wheel offers a rich palette of colors, including the option for smooth color transitions and rainbow effects, enabling you to set the perfect mood for any performance.​
In terms of strobing and dimming, it offers smooth 0 - 100% dimming for creating different lighting intensities. Additionally, the inclusion of prism effects, such as multiple prism combinations, can create unique and captivating visual spectacles on stage.​
Designed for professional use, this 350W 3IN1 Moving Head Light is the ideal choice for large - scale concerts, theater productions, corporate events, and any stage performance where high - quality, multi - functional lighting is required. It is built to be durable and reliable, with a sturdy construction that can withstand the rigors of frequent use and transportation. Upgrade your stage lighting setup and transform your shows with this outstanding moving head light.

EMAIL

OVERVIEW



·350W YODN (Philips optional)


· Zoom range:  2.5-40°


·0%-100% linear focus



· Efffect: Prism, Static gobo wheel, Rotating gobo wheel, colour wheel


· Usage: Theatre & opera, concert, stadium & sport venues,television, events & trade shows, permanent Installations




SPECIFICATIONS



SOURCE:

Light source: 350W YODN (Philips optional)





CONNECTIONS:

DMX in/out : 3-pin XLR

Power : PowerCon



POWER SYSTEM:

Voltage : AC100-240V 50/60Hz

Power consumption: 500W



Cooling system

Copper tube+Fan cooling system

OPTICS:

Zoom range : 2.5-40°

Focus: 0%-100% linear focus

High-density glass optical lens




Work Environment:

Maximum ambient temperature: 40°C

Minimum operating temperature: -10°C

Maximum surface temperature: 65°C



COLOR:

Color wheel: 14 colors+open






IP Rating:

IP20



GOBO:

Rotating: 8 interchangeable glass gobos +open

Static gobo: 17 gobos+open






SIZE/WEIGHT:

Product Size437*321*598 mm(L*W*H)

Net Weight15.5KG



Packing Size570*426*415mm

Gross Weight18KG





EFFECTS:

Prism: 6+24 linear prisms, motorized, rotating

Dimmer: 0%-100% Linear dimming

Strobe: 1-25times/sec High Speed Electronic Strobe






WARRANTY:

2 Years



MOVEMENT:

Pan:0-540°(16-bit control)

Tilt: 0-270°(16-bit control)

Automatic Pan/Tilt position correction



APPROVALS:

CE & RoHS

CONTROL:

Control Protocols: DMX512

Remote control on/off lamp function, self mode, master-slave mode, sound mode

2 DMX Channel Modes (16/22CH)

LCD display
