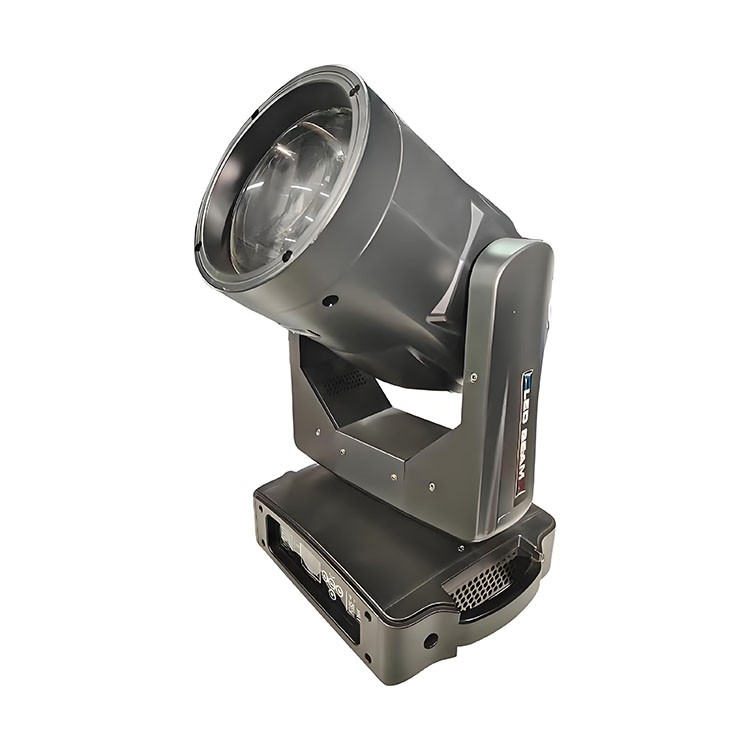

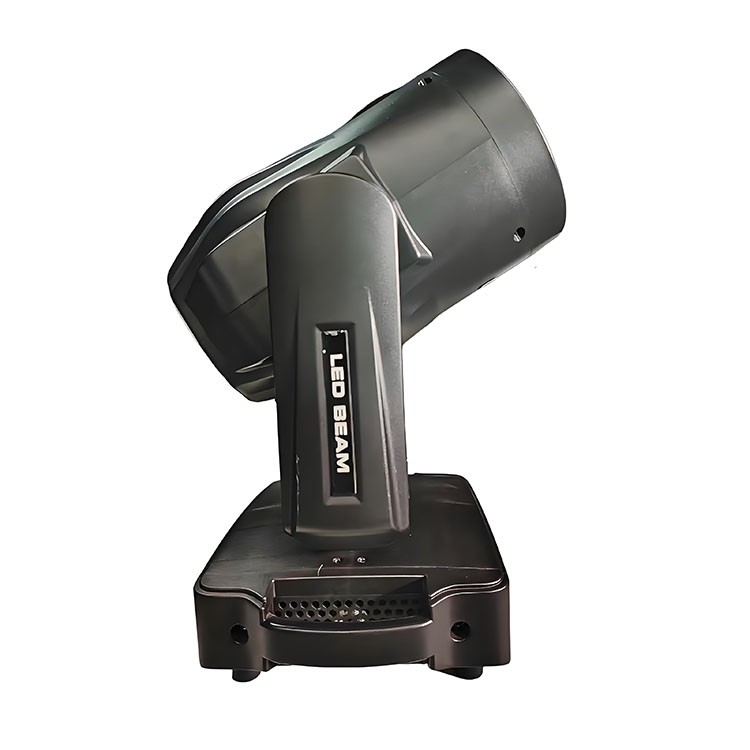

300W LED Beam Moving Head Light

VT-L300B Powered by a 300W LED light source, it offers energy - efficient yet intense illumination.​
This light produces sharp and focused beams, ideal for creating eye - catching effects. The advanced optical system ensures the beams reach far with remarkable clarity. Its color - creating capabilities are impressive. Equipped with a color wheel, it offers a variety of colors for an extensive color palette.​
The moving head design allows for wide - angle movement. With a large pan and tilt range, it can precisely target different areas. The high - precision movement mechanism ensures smooth and accurate positioning, enabling dynamic lighting shows.​
It supports DMX512 control, the industry standard, for easy integration into existing lighting systems. Additionally, it may offer master - slave and sound - activated control modes for more versatility.​
Built with a durable housing and an efficient cooling system, it can endure continuous use. Whether for stage performances, concerts, or clubs, this 300W LED Beam Moving Head Light is a reliable choice to create stunning lighting experiences.

EMAIL


OVERVIEW



·300W LED module


·Beam angle: 2°


·0%-100% linear focus


· Efffect: Frost, Prism, Static gobo wheel, colour wheel


· Usage: Theatre & opera, concert, stadium & sport venues,television, events & trade shows, permanent Installations




SPECIFICATIONS



SOURCE:

Light source: 300W LED module

Average Lifespan: 50,000 hours

Color temperature: 6800K

Illuminance: 45000lux@8m





CONNECTIONS:

DMX in/out : 3-pin XLR

Power : PowerCon




POWER SYSTEM:

Voltage : AC100-240V 50/60Hz

Power consumption: 320W



Cooling system

Copper tube+Fan cooling system

OPTICS:

Beam angle: 2°

Focus: 0%-100% linear focus

High-density glass optical lens




Work Environment:

Maximum ambient temperature: 40°C

Minimum operating temperature: -10°C

Maximum surface temperature: 65°C



COLOR:

Color wheel: 12 colors+open




IP Rating:

IP20



GOBO:

Static gobo: 14 gobos+open



SIZE/WEIGHT:

Product size: 33*21*55cm

Net weight: 13.5 KGS





EFFECTS:

Effect wheel: linear frost+ colorful mirror effect

Prism: 8+16 prisms

Dimmer: 0%-100% Linear dimming

Strobe: 1-25 times/sec High Speed Electronic Strobe





WARRANTY:

2 Years



MOVEMENT:

Pan:0-540°(16-bit control)

Tilt: 0-270°(16-bit control)

Automatic Pan/Tilt position correction



APPROVALS:

CE & RoHS

CONTROL:

Control Protocols: DMX512

DMX Channel : 16CH

LCD display
