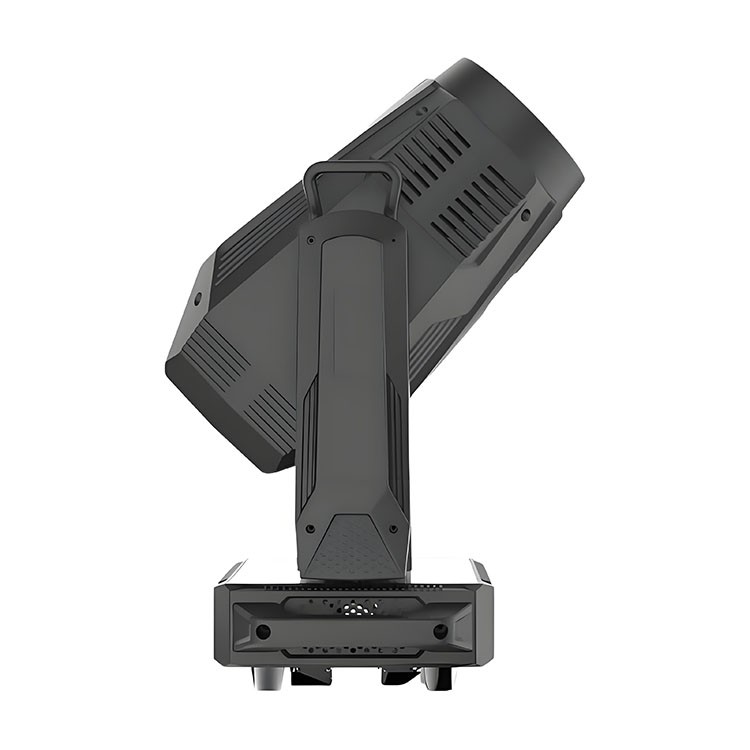

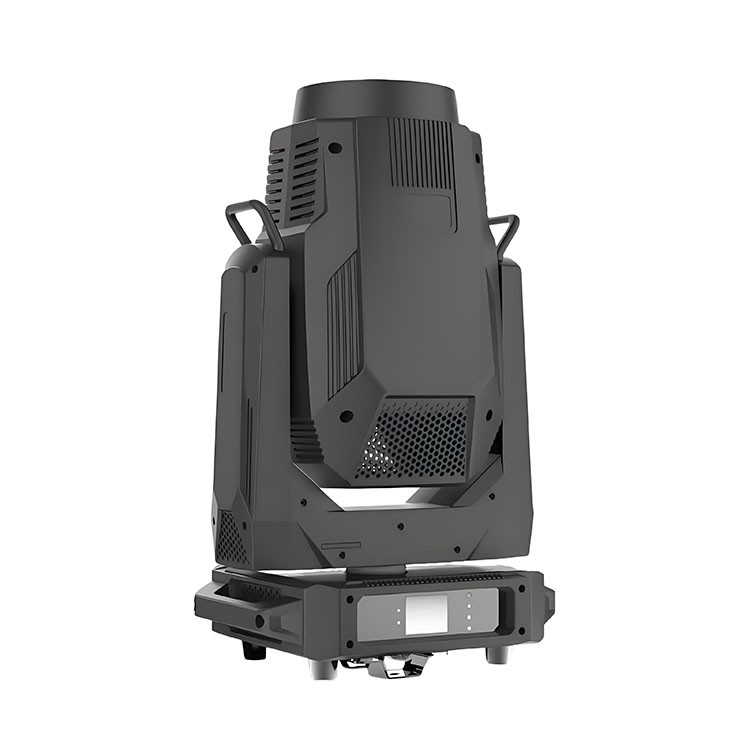

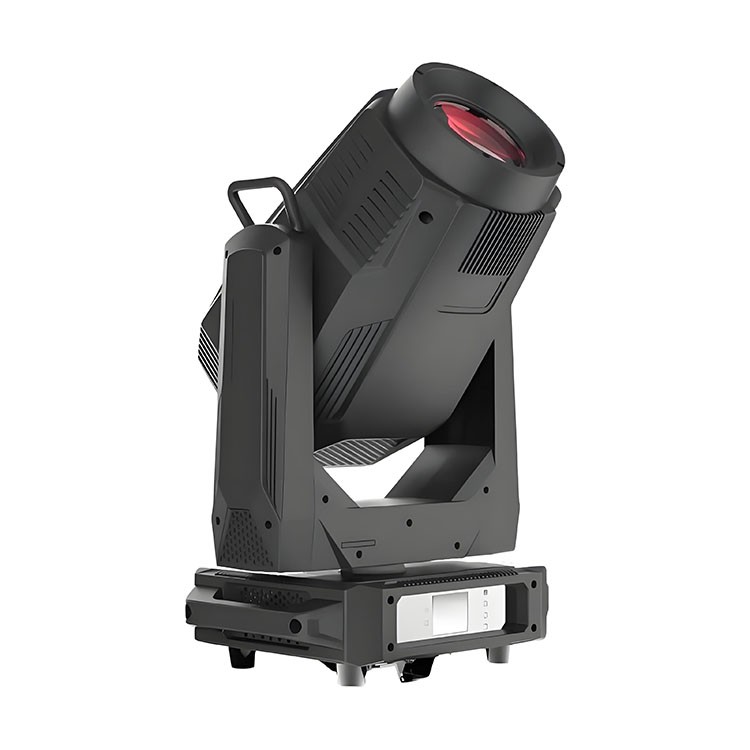

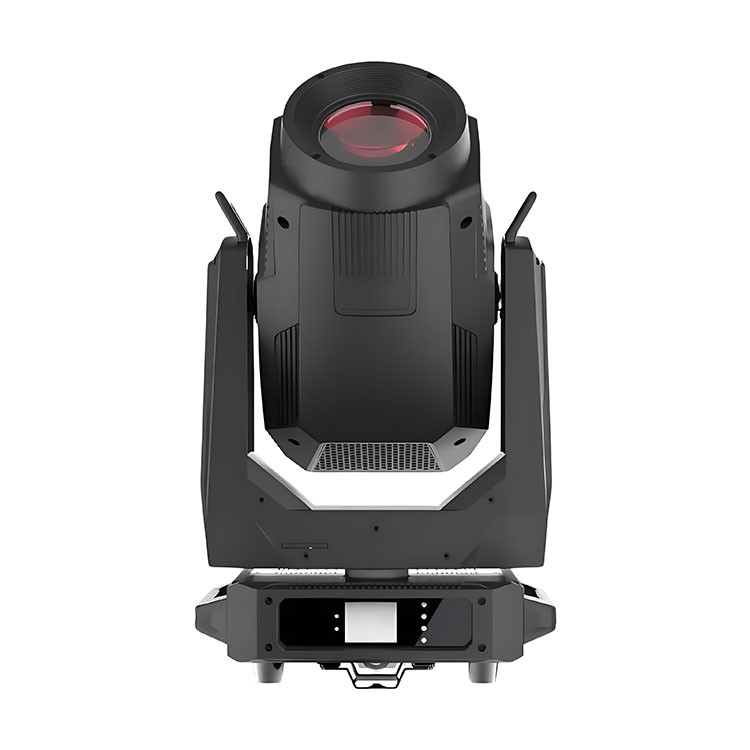

800W LED Profile Theater Light

VT-L800BSWF 800W Profile Moving Head Light is a powerful fixture for stage lighting. Use high brightness 800W LED, with a 30,000 - hour lifespan and high CRI, excellent beam effect. It offers diverse control modes like DMX512, standalone, and sound - activated. The framing cutting system allows custom - shaped spots, and the CMY + CTO color mixing, along with gobo wheels (including static gobo and rotating gobo), creates a spectrum of effects. Features such as high - speed strobe, linear dimming, and zoom enhance its versatility. Built to last, it withstands touring. Ideal for concerts, theater, events, and media productions, it's a top choice for creating stunning visual shows.

OVERVIEW

· 800W LED light source

· High brightness and high CRI optional

· Zoom range: 4.5°-50°

· Linear CMY

· CTO: 2800K-6000K

· Efffect: Frost, Prism, Static gobo wheel, Rotating gobo wheel, colour wheel

· Usage: Concerts, theater, events, and media productions, it's a top choice for creating stunning visual shows.

SPECIFICATIONS

SOURCE:

Light source: 800W LED module

Average Lifespan: 30,000 hours

Color temperature: 7500K

CRI: Ra≥75(High brightness mode), Ra≥90 (High CRI mode)

CONNECTIONS:

DMX in/out : 3-pin XLR

Power in : Power Con 16A

POWER SYSTEM:

Voltage : AC100-240V 50/60Hz

Power consumption: 1100W

Cooling system

Copper tube+Fan cooling system ,intelligent temperature regulated, low noise

OPTICS:

Beam angle: 4.5-50°

High-precision glass lenses

Focus: 5%-100% Electronic focus

Work Environment:

Maximum ambient temperature: 40°C

Minimum operating temperature: -10°C

Maximum surface temperature: 65°C

COLOR:

Color wheel: 7 colors+open

CMY: CMY linear color mixing

CTO: 2800K-6000K

IP Rating:

IP20

GOBO:

Rotating gobo: 9 interchangeable gobos+open,with shaking and positioning function

Static gobo: 19 gobos+open,with shaking and positioning function

SIZE/WEIGHT:

Product size:43.4*32*75.9cm

Net weight:36 KGS

EFFECTS:

Prism: 4+6 linear prisms, motorized, rotating

Frost: 0%-100% linear frost

Dimmer: 0%-100% Linear dimming

Strobe: 1-25times/sec High Speed Electronic Strobe

Pan/Tilt: 540°/270°, 8/16-bit control and automatic return correction

XY : Automatic error correction system and adopts a magneto-electric positioning system. It uses magnetic devices to replace the traditional Hall positioning system.

WARRANTY:

2 Years

Framing:

Four shutter blade, full crossover of each blade, the framing system can rotate ±45°and each blade can shape individually and cut off

APPROVALS:

CE & RoHS

CONTROL:

Control Protocols: DMX512, RDM

DMX Channel : 36CH

2.5 inch touch LCD display
