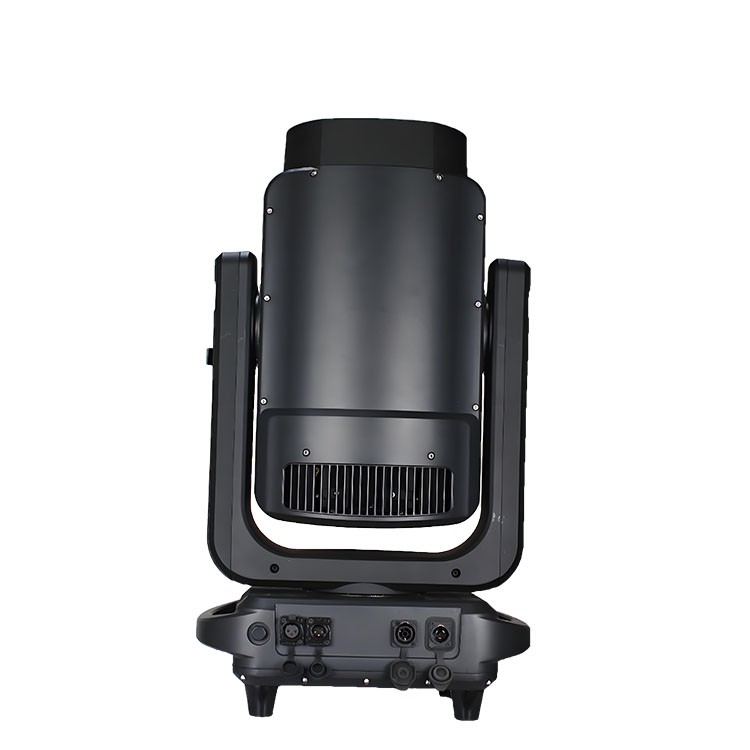

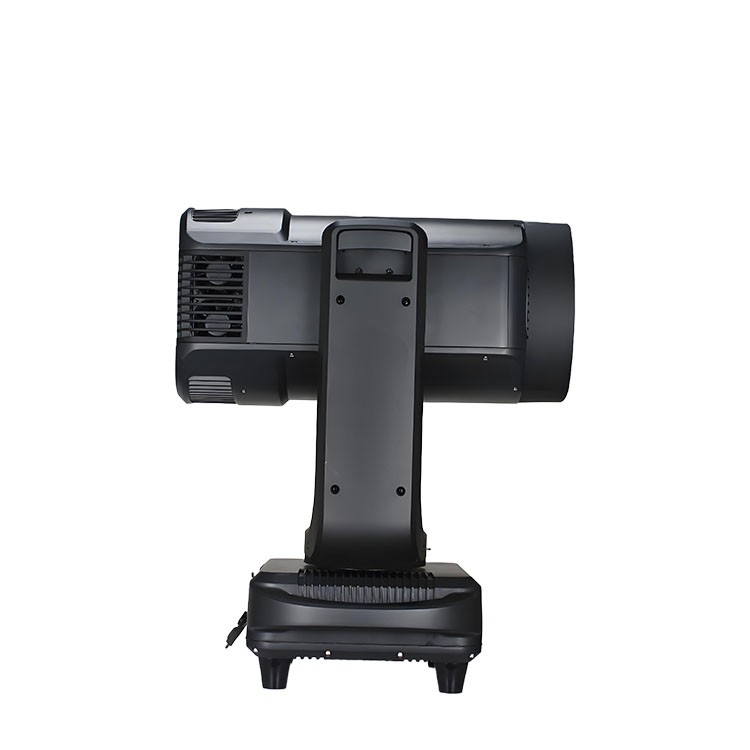

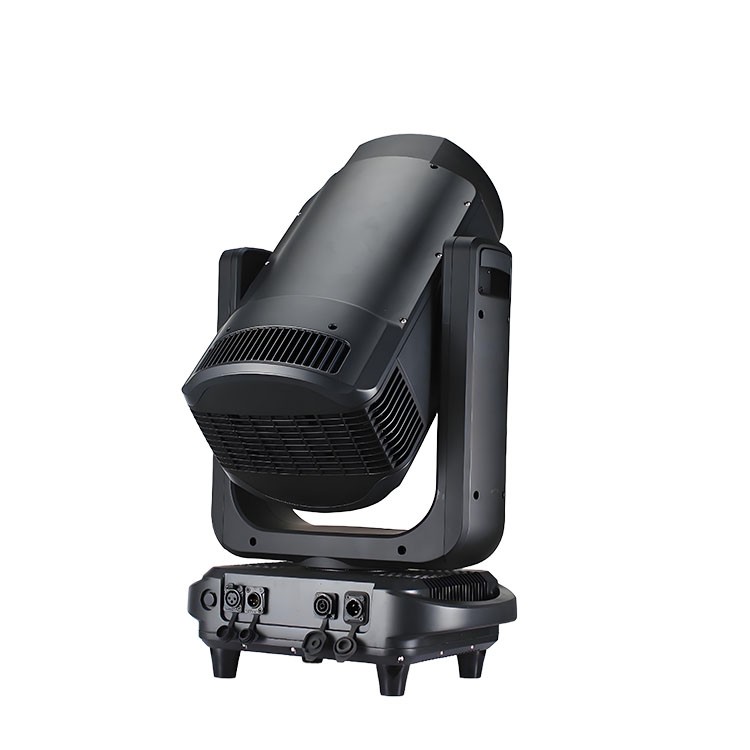

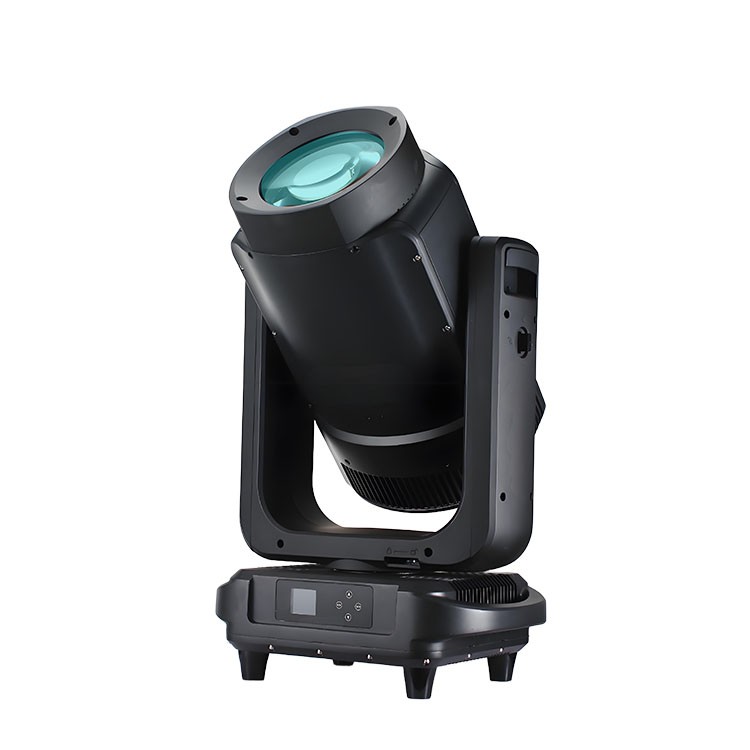

650W BSWF IP66 LED Moving Head Light
Model: VT-L650BSWF
Light Source: 650W LED engine (white light)
Color Temperature: 6000K
Beam angle: 3-45°
Color wheel: 11 colors+open
Rotating gobo: 8 gobos+open
Static gobo: 9 gobos+open
Prism: 1x4 prism
Two frost filters (soft and medium)
VT-L650BSWF is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, framing shutters, and control options in a lightweight frame. This compact unit just only 31 kgs,a smart optical system that output high lumens and provides high-quality color mixing with a CTB filter, also linear CMY color mixing and CTO color temperature system.Framing shutters system help you to cut precise shapes .The 360° rotating animation wheel give amazing effects such as fire or water wave.
A wide zoom range of 4° to 50°. It is a versatile luminaire capable of operating in all conditions, rated at IP66 it can be use both indoors and outdoors. It is perfect for stage ,outdoor events,concerts, theme park and commercial activities etc.
FEATURES
OVERVIEW
·650W White LED Engine,high brightness and high CRI versions available
· Zoom range: 3-45°
· Ultra-fast CMY Array and Variable Linear CTO
·Two frost filters (soft and medium) into the mix, and the creative possibilities become virtually endless
· Efffect: Frost, Prism, Static gobo wheel, Rotating gobo wheel, colour wheel, continual PAN & TILT
· IP66 making this luminaire a universal tool capable of meeting any challenge in all conditions
· Usage: Touring, large events, theme parks, and other fixed installations.
SPECIFICATIONS
SOURCE: 650W LED engine (white light) Color temperature：6000K Average Lifespan: 20,000 hours | CONNECTIONS: Waterproof Power in/out DMX in/out : Waterproof 3-pin XLR | |
POWER SYSTEM: Voltage : AC100-240V 50/60Hz Power consumption: 800W | Cooling system Copper tube+Fan cooling system ,intelligent temperature regulated, low noise | |
OPTICS: Beam angle: 3-45° High-precision glass lenses | Work Environment: Maximum ambient temperature: 40°C Minimum operating temperature: -10°C Maximum surface temperature: 65°C | |
COLOR: CMY linear color mixing,CTO linear color temperature adjustment 11 colors + CTB,rainbow effect with bidirectional rotation | IP Rating: IP66 | |
GOBO: Rotating gobo: 8 gobos+open ,with rotating,shaking, and water wave effects Static gobo: 9 gobos+open,with shaking and positioning function Animation: 1 wheel,with continuous rotation in both directions, interchangeable water wave and fire effect | SIZE/WEIGHT: Fixture size:397.5mm*280mm*693mm Carton size： Net weight: 31KG Gross weight：35KG | |
EFFECTS: Prism: 1X4 prisms effects , rotating in both directions Dimmer: 0%-100% linear dimming Strobe: 1-25times/sec High Speed Electronic Strobe Frost: 1 combinable light frost filter and 1 combinable medium frost filter | WARRANTY: 2 Years | |
MOVEMENT: Pan:0-540°(16-bit control),bidirectional continuous rotation Tilt: 0-270°(16-bit control),bidirectional continuous rotation Automatic Pan/Tilt position correction | APPROVALS: CE & RoHS | |
CONTROL: 4 touch button control LCD display Control Protocols: DMX512,RDM DMX Channels: : 34CH/39CH Intelligent control by mobile phone |
