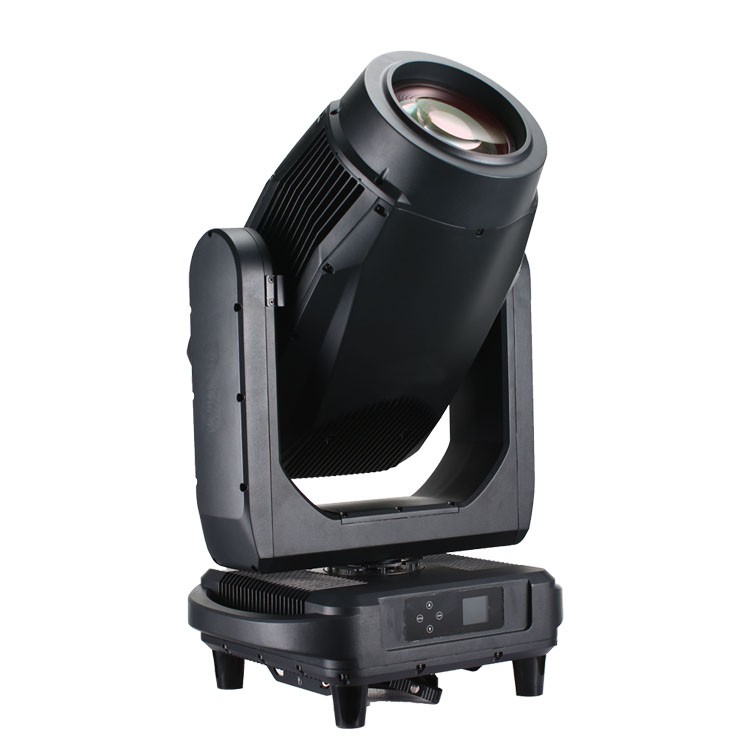

1000W BSWF IP66 LED Stage Spotlight
Model: VT-L1000BSWF-IP
Light Source: 1000W LED engine (white light)
Color Temperature: 6000K
Beam angle: 4-50°
Color wheel: 6 colors+open
Rotating gobo: 7 gobos+open
Static gobo: 8 gobos+open
Prism: 1 x 4-facet circular prism, 1 x 4-facet linear prism
Two frost filters (soft and heavy)
VT-L1000BSWF-IP Stage Spotlight is the idearl fixture for various applications require strong ouput, bright and powerful beam, quiet operation, precise gobos,colors, and framing cuts. We provide two version for your optional, high brightness and high CRI versions .Comprehensive color system that includes linear CMY and CTO, plus 6 color filters on dedicated wheels. 7 rotating gobos, 8 static gobos, animation wheel with interchangeable water wave and fire effect. 1 x 4-facet circular prism, 1 x 4-facet linear prism, and two frost filters (soft and heavy) into the mix, and the creative possibilities become virtually endless. Designed to excel in both indoor and outdoor environments thanks to its IP66-rated construction.
FEATURES
OVERVIEW
·1000W White LED Engine,high brightness and high CRI versions available
· Zoom range: 4-50°
· Ultra-fast CMY Array and Variable Linear CTO
·Two frost filters (soft and heavy) into the mix, and the creative possibilities become virtually endless
· Efffect: Frost, Prism, Static gobo wheel, Rotating gobo wheel, colour wheel
· IP66 making this luminaire a universal tool capable of meeting any challenge in all conditions
· Stage Spotlight Usage: Touring, large events, theme parks, and other fixed installations.
SPECIFICATIONS
SOURCE: Light Source：1000W LED engine (High brightness and high CRI versions available) CRI: High brightness CRI ≥ 70, High CRI: CRI ≥ 90 Average Lifespan: 20,000 hours | CONNECTIONS: Waterproof Power in/out DMX in/out : Waterproof 3-pin XLR | |
POWER SYSTEM: Voltage : AC100-240V 50/60Hz Power consumption: 1100W | Cooling system Copper tube+Fan cooling system ,intelligent temperature regulated, low noise | |
OPTICS: Beam angle: 4-50° High-precision glass lenses | Work Environment: Maximum ambient temperature: 40°C Minimum operating temperature: -10°C Maximum surface temperature: 65°C | |
COLOR: CMY linear color mixing,CTO linear color temperature adjustment 6 colors + white light,rainbow effect with bidirectional rotation | IP Rating: IP66 | |
GOBO: Rotating gobo : 7 gobos+open,with rotating,shaking, and water wave effects Static gobo: 8 gobos+open,with shaking and positioning function Animation: 1 wheel,with continuous rotation in both directions, interchangeable water wave and fire effect | SIZE/WEIGHT: Fixture size:429mm*340mm*733.5mm Carton size： Net weight: 41KG Gross weight：45KG | |
EFFECTS: Prism: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotating in both directions Dimmer: 0%-100% linear dimming Strobe: 1-25times/sec High Speed Electronic Strobe Frost: 1 combinable light frost filter and 1 combinable heavy frost filter Framing module(4 shutter blades) with individual control, and the complete framing system with+/- 90° rotation | WARRANTY: 2 Years | |
MOVEMENT: Pan:0-540°(16-bit control) Tilt: 0-270°(16-bit control) Automatic Pan/Tilt position correction | APPROVALS: CE & RoHS | |
CONTROL: 4 touch button control LCD display Control Protocols: DMX512,RDM DMX Channels: : 34CH/39CH Intelligent control by mobile phone |
